How do I connect the Huion Kamvas Pro 19 to my computer?

Wondering how to connect the Huion Kamvas Pro 19 to your computer? You can find the solution here.

Two USB-C Ports Facilitate Connections

The Huion Kamvas Pro 19 is equipped with two USB-C ports that can connect according to your needs.

  • 2x Full-functioned Type-C Ports: Support reverse insertion. Connect monitors, video equipment, or other devices. Provide reverse charging up to 40W for the connected computer/phone/tablet.
  • 3.5mm Headphone Jack: To connect a 3.5mm connector.
Please make sure you plug the cables into their respective ports. Otherwise, the device may fail to operate.

Huion Kamvas Pro 19 Ports

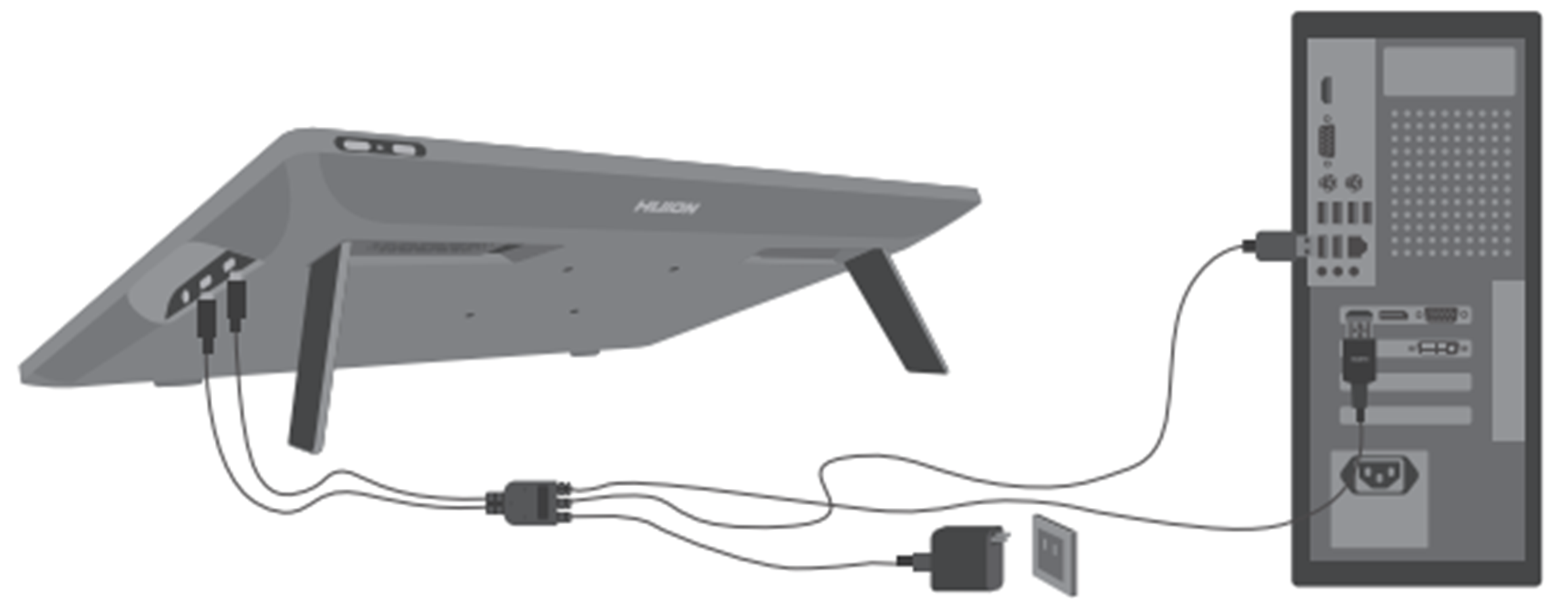

Connect via the 3-in-2 Cable (HDMI Mode)

If your computer does not have a USB-C port, you can use the included 3-in-2 cable for connection.

Huion Kamvas Pro 19 3-in-2 cable

Connection Steps:

  1. Connect the two USB-C cables to the pen display's port.
  2. Connect the black USB-A cable and HDMI cable to their respective ports on the computer.
  3. Then, connect the Power Adapter to the power cable and plug the power cable into a wall outlet to start your work.
NOTE: If your computer has a dedicated graphics card, ensure that you plug the HDMI end of the 3-in-2 cable into the dedicated graphics card's HDMI port, rather than the one on the PC's motherboard. Computers running Windows, macOS, and Linux (Ubuntu) are supported.

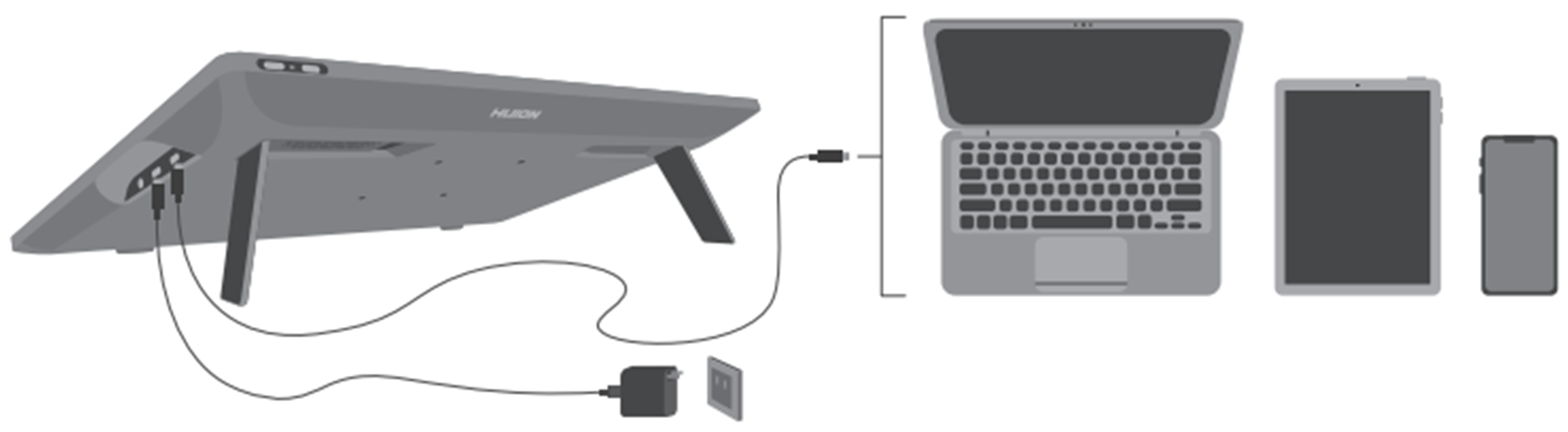

Connect via the Full-featured USB-C to USB-C Cable (DP Mode)

If your computer/laptop/phone has a USB-C port that supports DP mode, you can use the USB-C to USB-C cable connection.

USB-C to USB-C cable

IMPORTANT: Please ensure that the USB-C ports on your phones, tablets, and computers support at least the USB 3.1 Gen 1 data transfer protocol and DisplayPort 1.2 (DP 1.2).

Connection Steps:

  1. Connect the full-featured USB-C to USB-C cable to any of the pen display's ports and the computer or Android device.
  2. Then, connect the power cable to the other available port on the pen display and the power adapter for the power supply.

Connect via the USB-C to USB-C Cable

Ensure that your computer's USB-C port is capable of handling a display connection; otherwise, your tablet will show "No signal."

Computers running Windows, macOS, and Linux (Ubuntu) are supported, as are Android tablets and phones. (Please note that not all Android phones support full-screen mode.)

For more information about phone connections, please refer to this article: How do I connect the Huion Kamvas Pro 19 to my phone?

For any further questions, please feel free to submit a ticket to us.
