Setting Up the Left-hand Mode for Your Huion Tablets

If you have trouble setting up the left-hand mode on your Huion graphic tablet or pen display, this tutorial will help you set your tablet up.

Before adjusting the left-hand mode on your tablet, please refer to any of the following articles:

 NOTE: When you choose duplicate or mirror mode and you have a display tablet, both your computer and your display tablet's screen will be flipped or get rotated. Thus, please use extend mode instead.


TABLE OF CONTENTS


Version 15 Drivers

Setting up the left-hand mode on graphic tablet (For both Windows and Mac OS systems)

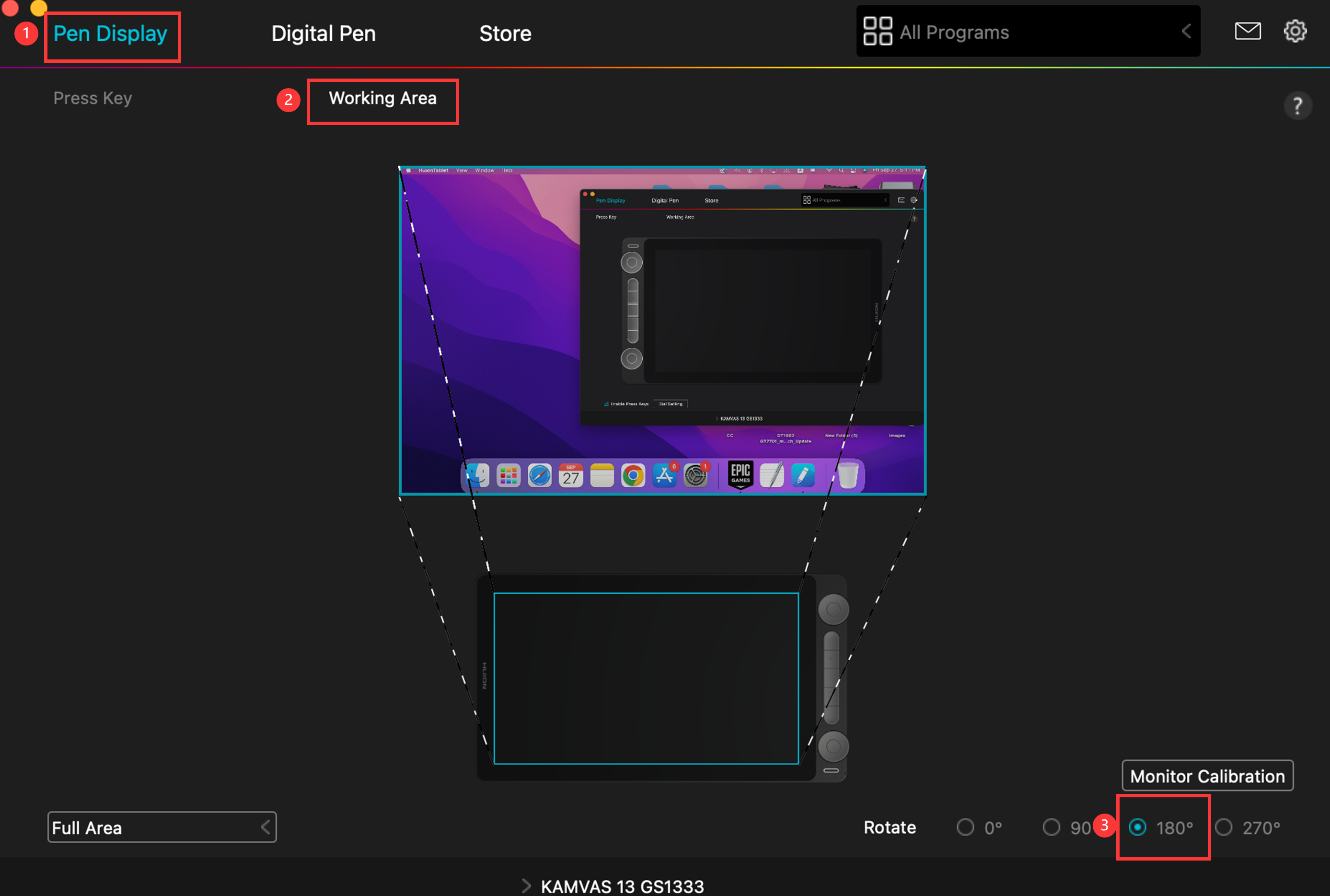

Step 1. Open the driver interface and under the Pen Display options, click the “Working Area” then select 180° in the “Rotate” options.

Step 2. Flip the graphic tablet to use.


Setting up the left-hand mode on pen display (Windows OS)

Step 1. Open the driver interface and under the Pen Display options, click the “Working Area” then select 180° in the “Rotate” options.

Step 2. Right-click on your Desktop > click "Display settings" > scroll down and under "Display orientation", choose "Landscape (flipped)".

Step 3. Flip the pen display to use.


Setting up the left-hand mode on pen display (MacOS)

Step 1. Open the driver interface and under the Pen Display options, click the “Working Area” then select 180° in the “Rotate” options.

Step 2. Click the Apple icon at the top left of the computer > Select “System Preferences” > Click “Display” to enter the “Display Setting” > choose your tablet display > set the rotation to 180 ° > click "Done".

Step 3. Click "Confirm" if prompted to use the new display setting.

Step 4. Flip the pen display to use.


Version 14 Drivers

Setting up the left-hand mode on graphic tablet (For both Windows and Mac OS systems)

Step 1. Open the driver interface; click the “Work Area”.

huion left hand mode setting up

Step 2. Select 180° in the “Rotate Set” and click the “OK” or “Apply” button to save changes.

huion left hand mode setting up

Step 3. Flip the graphic tablet to use.


Setting up the left-hand mode on pen display (Windows OS)

Step 1. Open the driver interface; click the “Work Area” > Select 180° in the “Rotate Set”> click the “OK” or “Apply” button.

huion left hand mode setting up

Step 2. Right-click on your Desktop > Click the “Screen resolution” > Select orientation to “Landscape (Flipped)” > Click the “OK” or “Apply” button.

huion left hand mode setting up

 Or right-click on your Desktop > Click "Display settings" > scroll down and under "Display orientation", choose "Landscape (flipped)".

Step 3. Flip the pen display to use.


Setting up the left-hand mode on pen display (MacOS

Step 1. Open the driver interface; click the “Work Area” > Select 180° in the “Rotate Set” > click the “OK” or “Apply” button.

huion left hand mode setting up

Step 2. Click the Apple icon at the top left of the computer > Select “System Preferences” > Click “Display” to enter the “Display Setting” > choose your tablet display and set the rotation to 180 °.

huion left hand mode setting up

Step 3. Flip the pen display to use.
